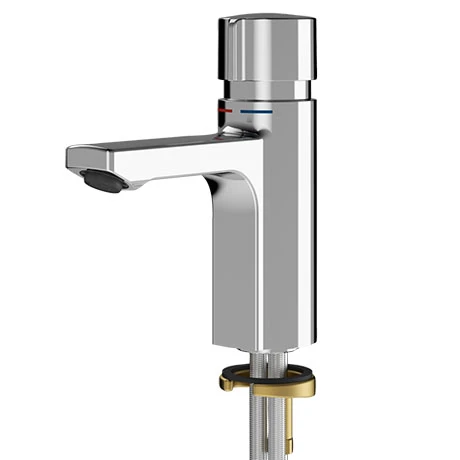

Franke F5S Self-closing Pillar Mixer Tap – F5SM1001

F5S-Mix self-closing pillar mixer DN 15 as single-mixer tap for sanitary facilities. FRAMIC self-closing mixing cartridge, hydraulically controlled, low-maintenance and stagnation-free, with ceramic disc technology, self-closing, flow pressure-independent due to medium-separated design. Stepless adjustment of flow duration. With adjustable, turn-proof temperature stop. For connection to hot water and cold water via hoses with integrated backflow preventer and strainers. All-metal construction, high-polished chromium-plated brass. Anti-theft aerator, SLIM design, with integrated flow regulator 5.0 l/min.

Product Details

• Depth: 280mm
• Height: 190mm
• Width: 75mm
• Material: Brass
• Colour: Chrome
• Deck Mounted
• Type of operation: manual operation
• Diameter nominal: DN 15
• calculation flow rate cold water: 0.07 liter per second
• calculation flow rate hot water: 0.07 liter per second
• Functional principle: hydraulic self-closing
• minimum flow pressure: 0.50 bar
• volume flow rate at 3 bar: 0.08 liter per second
• Inlet size: G3-8
• Type of mixing: with mixer
• adjustable flow time: yes
• Material fitting: brass
• Sound insulation: no
• spout projection: 125.00 mm
• Surface finish fitting: chromed
• Type of tap: pillar tap
• depressurised: no
• thermal disinfection: no
• protective shutdown: no
• maximum flow time: 60.00 seconds
• minimum flow time: 5.00 seconds
• hygiene flushing: no

Guarantee: 5 Year
