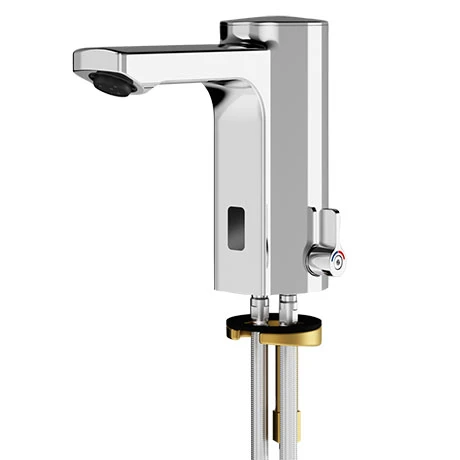

Franke F5E Electronic Pillar Mixer Tap – F5EM1001

F5E-Mix pillar mixer DN 15 for sanitary facilities, opto-electronically controlled. For connection to hot and cold water via hoses with integrated backflow preventer and strainers. Control electronics, solenoid valve cartridge, 6 V lithium battery (CR-P2) and sensor in all-metal housing, high-polished chromium-plated brass. Temperature lever with adjustable, turn-proof temperature stop as well as conversion set for concealed mixing device. Anti-theft aerator, design SLIM, with integrated flow regulator 5.0 l/min. Activated water hygiene flushing 24 hours after last activation, safety switch-off with continuous reflection and saving of statistical data. With option for parameterization and communication via optional, bidirectional remote control.

Product Details

• Depth: 280mm
• Height: 190mm
• Width: 75mm
• Material: Brass
• Colour: Chrome
• Deck Mounted
• Type of operation: sensor operation
• Protective system IP: IP59K
• power supply connection: Battery 6 V
• Diameter nominal: DN 15
• calculation flow rate cold water: 0.07 liter per second
• calculation flow rate hot water: 0.07 liter per second
• Functional principle: electronic self-closing
• minimum flow pressure: 1.00 bar
• volume flow rate at 3 bar: 0.08 liter per second
• Inlet size: G3-8
• Type of mixing: with mixer
• Material fitting: brass
• Sound insulation: no
• spout projection: 125.00 mm
• Surface finish fitting: chromed
• Type of tap: pillar tap
• depressurised: no
• thermal disinfection: no
• protective shutdown: yes
• default automatic hygiene flushing: 24h after the last activity
• type of sensor: opto-electronic sensor
• hygiene flushing: yes

Guarantee: 5 Year
